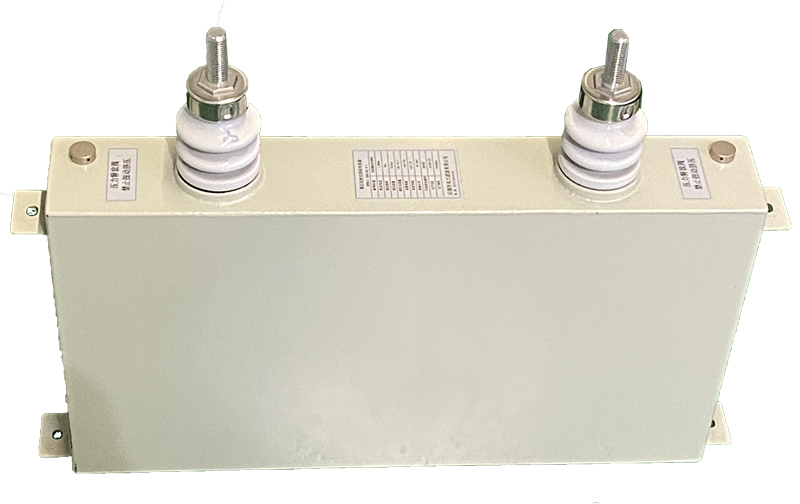

High Voltage Self-Healing Capacitor

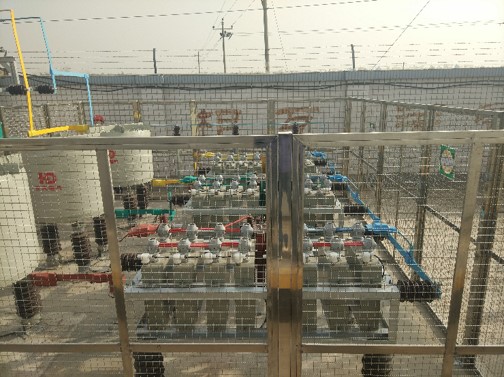

High Voltage Self-Healing Capacitor: Power Grid and Substation Reactive Power Compensation

Main Technical Specifications:

Operating Temperature: -45℃ to +70℃

Rated Voltage: 10kV AC

Rated Capacity: 100 to 500 kvar

Expected Lifespan: 100,000 hours

Enclosure: Rectangular housing made of austenitic stainless steel

Installation: Fixed mounting with lifting lugs and bolted capacitor fixing

Potting Method: Dry type, resin potting

Oil-Free High Voltage Self-Healing Shunt Capacitor: No oil leakage, prevents burning and explosion.
