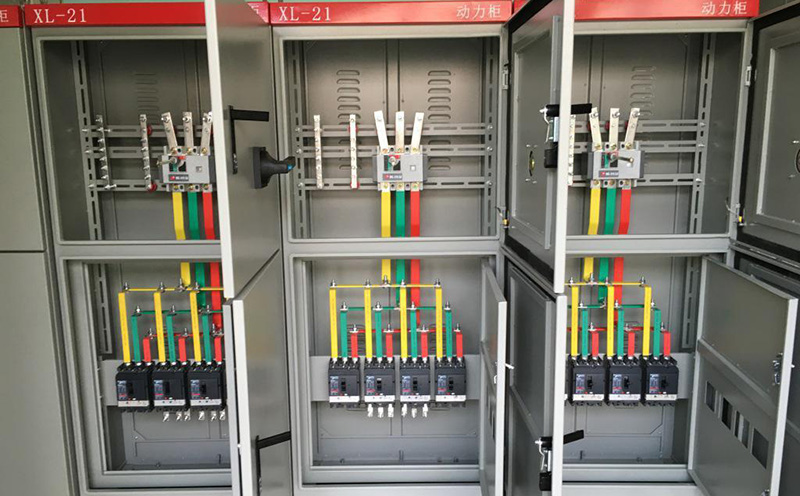

Intelligent distribution cabinet

Intelligent distribution cabinet, also known as precision distribution cabinet, is a distribution cabinet designed to collect all power data for data center machine rooms. Provide high-precision measurement data for the terminal power monitoring system, and reflect real-time power quality data through flashing units. And upload it to the backend environment control system through digital communication. To achieve real-time monitoring of the entire distribution system and effective processing of work quality. Assist users in optimizing network data centers, strengthening energy consumption processing, improving the working power of power supply racks, and ensuring reliable supply of green IDC in all aspects. It is mainly used for important customers such as IDC data centers or industrial enterprises in telecommunications, finance, government, and IT, to supply power distribution, distribution circuit maintenance, metering, processing, and computer grounding for important equipment such as network transformers. It is used in the field of high reliability uninterrupted power supply.

Firstly, traditional distribution cabinets use pointer or digital display surfaces, which can only monitor the parameters of the distribution cabinet to a limited extent and meet fundamental needs. Intelligent distribution cabinets use highly integrated and reliable computer motherboards to comprehensively monitor the various working parameters of the system, and summarize and flash them through HMI, reducing the space occupation of the distribution cabinet and improving its floor area ratio.

Secondly, traditional distribution cabinets only have the function of power distribution processing, distributing power to load cabinets; And intelligent distribution cabinets, in addition to power distribution processing, also have the functions of work processing and safety processing, effectively improving the reliability of the entire distribution system and reducing risks.

Thirdly, traditional distribution cabinets support fewer circuits and occupy a large overall area; The intelligent distribution cabinet uses high-precision and highly integrated modules, which increases the volume of the cabinet, supports more circuits, and reduces the footprint.

Measure accurate electrical information to provide useful processing and risk warning for the power supply system

Monitor the electrical parameters of up to 84 feeder circuits and 1 power supply incoming line, providing accurate information on the current, energy, and harmonics of the main power supply incoming line and each branch circuit. The intelligent distribution cabinet can cooperate with the leakage collection unit to complete online leakage monitoring function, and work together with temperature sensor accessories to monitor the temperature inside the cabinet in real time, improving the safety of the power supply system in the computer room.

Multi layer alarm settings can avoid potential drawbacks and ensure early adoption of measures to address them

Multi layer alarm settings are implemented for parameters such as circuit overload, overvoltage, undervoltage, three-phase imbalance, isolation transformer overheating, and lightning protection failure. Through the collaboration of flashing units or professional gateways, alarm information can be immediately reported to the processor through flashing, sound and light alarms, text messages, and emails.

Supply accurate measurement data to meet various needs together

Satisfy the monitoring of rack mounted and blade type power supplies, and select multiple feeder CT ranges to minimize measurement errors. The branch circuit can support a maximum loop measurement requirement of 100A.

Excellent functionality and highly integrated products ensure that the equipment operates more stably and safely

By using the method of gathering and processing branch measurements, the product integration is high, and the standard for power monitoring and collection equipment is only (214 * 168). It can accommodate equipment in relatively small spaces of the cabinet, greatly enhancing the equipment capacity and overall stability of the cabinet, and making it more convenient for users to maintain in the future.

Make operations and energy processing more efficient

Enable users to timely understand the working status of the load and complete monitoring and alarm of each PDU power supply. Multi layer alarm settings avoid potential power supply defects, making it easier for users to detect safety hazards early and avoid distribution risks. Alarm comprehensively, complete precise power distribution, and reduce some power outages caused by user misoperation. The system can store 3000 historical records and defect information locally, with strong real-time data collection and providing critical data analysis for users to analyze the reasons for defects.

The intelligent distribution cabinet center monitoring unit LPDU fully considers the working environment, power grid quality, and harmonic disturbance of the data center in the planning, component selection, and production inspection stages, and grasps the product adaptability and quality from various aspects based on the power supply characteristics of the power equipment. The standard development system and comprehensive inspection equipment ensure that every intelligent distribution cabinet has excellent quality and reliable functionality.
